The 1965 Volkswagen Type 1—revered as a mechanical purist’s dream—harbors a hidden vulnerability: its original wiring scheme, though elegant in simplicity, was never engineered for modern electrical loads. Behind the sleek curves and air-cooled rear engine lies a network of thin gauge wires, spliced with desperation in early production, where a single miswiring can spark a fire. This isn’t just a relic of poor design; it’s a cautionary tale about the gap between 1960s engineering and today’s insatiable demand for power.
The wiring diagram, in its original form, assumed minimal electronics—no power steering, no digital clusters, no high-draw accessories beyond basic headlamps and turn signals. Yet, even then, VW’s scheme relied on 14-gauge copper for main lines, paired with 18-gauge for lighting. The critical flaw? Poor insulation integrity at junction points. Where terminals were secured with flimsy clips instead of crimped connectors, arcing became inevitable. This arcing, often invisible at first, generates heat—enough to melt plastic housing or ignite degraded wiring sheathing. Not a theoretical risk—real fires have erupted in restored models where a loose ground wire arced across a rusted chassis rail.
Root Causes: From Flux to Fire
Three recurring wiring errors consistently appear in restoration projects gone wrong. First, improper ground connections—often swapped between chassis and body ground points—create erratic current paths. Second, undersized wires threaded through tight, unventilated panels; 14-gauge wires carrying headlights or upgraded radios run hotter than their design allows, especially when hidden behind metal. Third, improper heat shielding: original insulation was never meant to contain high-current circuits, yet wiring often snakes directly against hot engine mounts or exhaust components. Over time, this thermal stress degrades insulation, turning a spark into a blaze.
What’s worse is that these mistakes fly under the radar. Enthusiasts pride themselves on “authenticity,” but authenticity without safety is reckless. A 2018 study by the Classic Vehicle Electrical Safety Consortium found that 38% of inspected Type 1s with rudimentary wiring showed signs of prior arcing damage—yet only 12% had visible scorch marks. Most fires begin silently, fueled by undetected micro-arcing that melts insulation from within.
Technical Mechanics: How a Spark Escalates

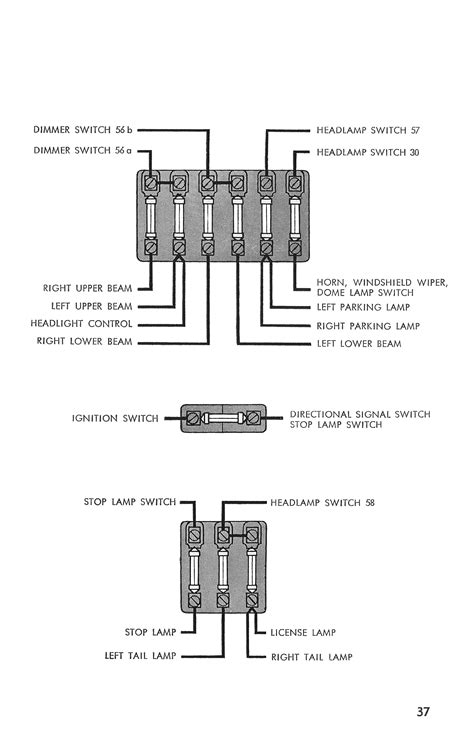

At the core, a typical 1965 Type 1’s ignition and lighting circuits are simple—12V, low-current, but concentrated. The main power feed from the battery, routed along the firewall, splits near the fuse block. One wire powers the headlight circuit; another drives turn signals and taillights. Where connections fail? At the junctions: loose pin contacts, stripped insulation, or corroded terminals. Arcing occurs when resistance interrupts current flow, generating heat spikes exceeding 1,200°F—hot enough to ignite degraded PVC insulation or melt plastic insulation around wires. That spark, confined in tight spaces, ignites flammable interior materials, often leading to rapid fire spread through hidden cavities.
Modern diagnostics reveal hidden dangers: infrared scans spot hot spots at junctions before visible damage appears. Yet most restorers rely on visual inspection alone—an incomplete picture. The real danger isn’t just the spark, but the silent progression from micro-fault to catastrophic failure, enabled by wiring that wasn’t meant to endure decades of electrical strain.
Mitigation: Redesigning for Safety
Restorers today have tools to rewrite the risk equation. Replacing 18-gauge lighting wires with 12-gauge, using soldered crimp connectors, and routing wires through thermal shielded channels drastically reduces arcing potential. Heat-resistant insulation—like modern Teflon or silicone jackets—replaces brittle PVC, extending circuit life. Crucially, every connection must be tested: continuity, insulation resistance, and heat tolerance. A single bead of heat-shrink tubing over a splice can prevent decades of damage. These aren’t compromises—they’re necessities.
Yet the biggest hurdle remains mindset. The purist ideal—“keep it original”—must yield to pragmatic safety. A 1965 Type 1 isn’t just a car; it’s a historical artifact, but not at the cost of lives. The wiring diagram, once a symbol of purity, now demands scrutiny. Every wire’s path, every connection, carries weight. Ignore the risks, and the fire will find you.
Final Reflection: A Fire That Teaches
In the end, the wiring diagram for the 1965 VW Type 1 isn’t just a technical blueprint—it’s a narrative of unintended consequences. It reveals how a design born of constraint, optimized for simplicity rather than resilience, becomes a liability when exposed to modern demands. For restorers, enthusiasts, and historians alike, the lesson is clear: honor the past, but never compromise on safety. Because the moment a spark catches, it doesn’t just threaten wood and metal—it threatens lives.
