Behind every cold shelf, refrigerated warehouse, or precision climate-controlled lab lies a silent, intricate dance—one governed not by magic, but by thermodynamics refined over decades. The refrigeration cycle is far more than a sequence of compressors, condensers, and expansion valves. It’s a precisely choreographed system where entropy, pressure differentials, and phase transitions converge. Yet, even seasoned engineers occasionally overlook the subtle interplay of components that determines real-world efficiency and reliability.

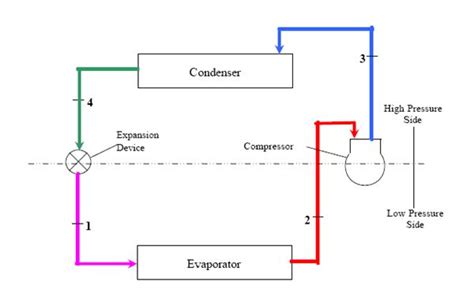

At its core, the vapor-compression cycle operates on a four-phase journey: evaporation, compression, condensation, and expansion. But understanding the schematic goes beyond labeling these steps. The *true* diagnostic lies in analyzing how each component—especially the compressor, condenser, expansion valve, and evaporator—interacts under load, particularly when system design tolerances are pushed. In practice, even minor misalignments in pressure ratios or refrigerant charge can trigger cascading failures, reducing system lifespan by up to 30%.
Phase Dynamics: Where Efficiency Is Born
The evaporator, often underappreciated, absorbs heat from the environment by enabling refrigerant vapor to expand and cool. This phase demands precise control—modern systems use microchannel designs to maximize surface area, yet many installations still rely on oversized or undersized units. The condenser, conversely, rejects heat with brutal efficiency; its fin-and-tube geometry must balance airflow resistance and thermal conductivity. A clogged condenser coil, even by 20%, can spike compressor temperatures by 15°C, accelerating wear.
Compressors, the workhorses, vary widely in design—scroll, reciprocating, screw, centrifugal—each suited to specific loads and environments. But their performance isn’t just about power rating. Variable-speed compressors, now widespread, modulate output to match demand, cutting energy use by 25–40%. Yet, their integration with control systems remains a fragile link. A miscalibrated pressure sensor or delayed response can cause surge events, risking mechanical fatigue within hours.
Expansion Valves: The Unsung Regulators
Expansion valves—often seen as passive—play a critical role in throttling refrigerant and enabling efficient phase shift. Capillary tubes offer simplicity but lack adaptability; electronic expansion valves, though precise, demand robust sensors and fail-safe logic. The schematic should reveal not just their presence, but their response characteristics: how quickly they open, how accurately they meter flow under transient loads. Real-world data from industrial installations show that even a 10% deviation in valve timing can increase compressor work by 12–18%.
Refrigerant Matters: A Critical Variable
Choosing the right refrigerant isn’t merely a regulatory checkbox—it’s a foundational design choice with cascading implications. R-410A dominated for years, but its high global warming potential (GWP) has spurred adoption of low-GWP alternatives like R-454B and R-32. Each has distinct thermodynamic properties: R-32 offers better efficiency but demands tighter leak control due to flammability. The schematic must reflect these nuances—matching refrigerant characteristics to system duty, load profiles, and safety standards. Misalignment here has real consequences: a 5°C temperature overshoot in a cascade system using incompatible fluids can degrade insulation and increase energy demand by 15–20%.
From Schematic to Reality: Diagnostics and Risks
Reading a refrigeration cycle schematic is only the first step. True mastery comes from cross-referencing with operational data: pressure-temperature curves, refrigerant charge levels, and real-time efficiency metrics. Discrepancies between design and field performance often point to hidden issues—pipe fouling, refrigerant contamination, or control loop drift—requiring root-cause analysis beyond surface symptoms.
Consider a commercial kitchen unit that experienced recurring compressor trips. The schematic showed standard pressure differentials, but on-site monitoring revealed a persistent 8% low-side refrigerant charge. This imbalance caused low-pressure cycling, overheating the compressor and shortening its service life. The fix? Recharge to design specifications and recalibrate pressure sensors—proof that maintenance is not just about parts, but about preserving the integrity of the cycle’s thermodynamic logic.
The Hidden Costs of Design Oversight
Many systems fail not because components fail, but because the cycle itself is misaligned with use. Oversized compressors cycling frequently degrade faster than properly sized units. Poor insulation in piping introduces thermal short-circuiting, increasing compressor load by up to 20%. Even ambient conditions—outdoor temperature swings, humidity—exert pressure on refrigerant charge and heat exchange efficiency. The schematic must anticipate these variables, modeling not just ideal conditions, but worst-case operational envelopes.
Toward Smarter, More Resilient Cycles
The future of refrigeration lies in adaptive, data-driven systems. Smart sensors, predictive analytics, and AI-optimized controls are transforming static schematics into dynamic models. Yet, even with advanced tech, the fundamentals endure: pressure balances, heat transfer rates, and phase stability remain non-negotiable. The most effective designs marry deep mechanical insight with real-time feedback, ensuring the cycle adapts—not just reacts—to changing demands.
In the end, the refrigeration cycle schematic is more than a diagram. It’s a diagnostic map, a risk assessment tool, and a blueprint for resilience. For investigators, engineers, and operators alike, mastering its core analysis isn’t just technical—it’s a safeguard against inefficiency, failure, and unnecessary environmental cost. The cold chain keeps food safe, data centers stable, and medicines viable—but only when the cycle’s inner workings are understood, monitored, and respected.
