Behind every seamless shift, behind the illusion of simplicity, lies a labyrinth of precision engineering. Automatic transmissions, long dismissed as “black boxes,” are in truth intricate choreographies of gears—each with defined roles, tolerances, and engineering intent. To grasp how they transform engine power into smooth motion, one must unravel the mechanical logic embedded in their internal layout.
At the core of modern automatic transmissions are planetary gear sets—compact marvels that enable multiple gear ratios within a single housing. A single planetary gear group, for instance, typically includes a sun gear, multiple planet gears, and a ring gear. The sun gear—usually fixed or driven—serves as the axis of rotation, while the planet gears orbit around it, meshing with both sun and ring gears in a dance governed by torque distribution and gear ratios. This arrangement allows for compact multi-speed functionality without shifting levers or clutches.
But here’s where most analysis stops short: the differential’s role in gear behavior. Unlike manual transmissions, automatic systems rely on a central differential to distribute torque to output shafts, often employing a torque converter as a fluid coupling. Within this system, idler gears—often overlooked—redirect flow, enabling smooth power transfer during shift cycles. Their rotation is counterintuitive: spinning opposite to the input, yet vital for maintaining vehicle stability under dynamic loads.

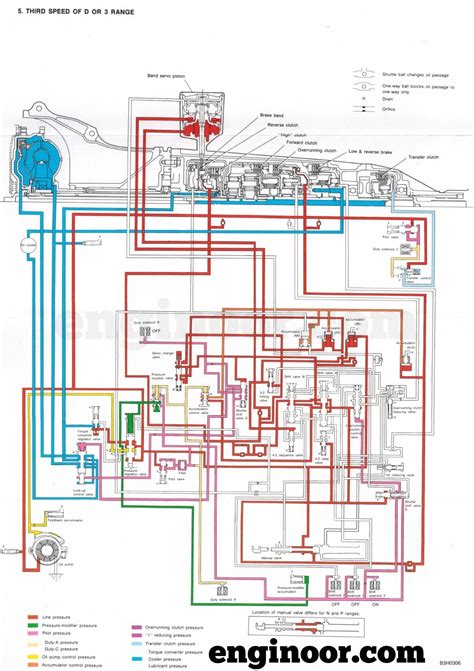

Shifting isn’t random—it’s choreographed by a hydraulic or electronically controlled valve body that governs clutch pack engagement. Each gear ratio corresponds to a specific pressure curve and fluid flow pattern. Too aggressive a shift, and the system generates shock loads; too passive, and efficiency stalls. The real art lies in tuning these responses across the engine’s torque curve, balancing responsiveness with durability.
Key mechanical insights:- Planet gears bear the dual burden of transmitting torque and enabling compact multi-speed operation—each rotation a calculated exchange of force across three contact points.
- Idler gears, though stationary in steady drive, dynamically manage directional flow, ensuring shifts remain smooth under transient loads.
- Hydraulic pressure differentials act as silent arbiters—dictating shift timing, clutch release, and gear engagement with millisecond precision.
- Torque converter dynamics introduce a fluid buffer that softens abrupt starts but demands careful calibration to avoid power slippage.
Industry shifts are redefining these gears: dual-clutch and continuously variable transmissions (CVTs) reduce complexity but shift mechanical demands. In dual-clutches, rapid gear changes demand gear sets with higher fatigue resistance and tighter tolerances—often measured in microns—while CVTs replace traditional gears with a belt and pulley system, trading gear teeth for variable ratios. Yet even here, the fundamental principle endures: torque must be transformed, controlled, and delivered efficiently.
From a mechanic’s vantage, understanding these systems means seeing beyond labels. A 10-speed automatic isn’t merely a dozen gears—it’s a feedback loop of planetary meshing, fluid dynamics, and electronic control, fine-tuned to deliver performance without driver input. Common misconceptions persist—like equating gear count with power—yet the reality is more nuanced: a well-engineered transmission achieves what it needs with minimal components, not maximum complexity.
The hidden cost? Maintenance precision. Gear wear, fluid degradation, and valve body clogging silently erode performance over time. Ignoring these leads not just inefficiency, but costly repairs—often avoidable with routine diagnostics. As transmissions evolve, so does the need for skilled mechanics fluent in both analog intuition and digital diagnostics.
In essence, the automatic transmission is a testament to mechanical ingenuity. Every gear, every fluid path, every pressure curve tells a story of balance—between friction and flow, force and finesse. To master it is to understand not just how it works, but why it works that way.
